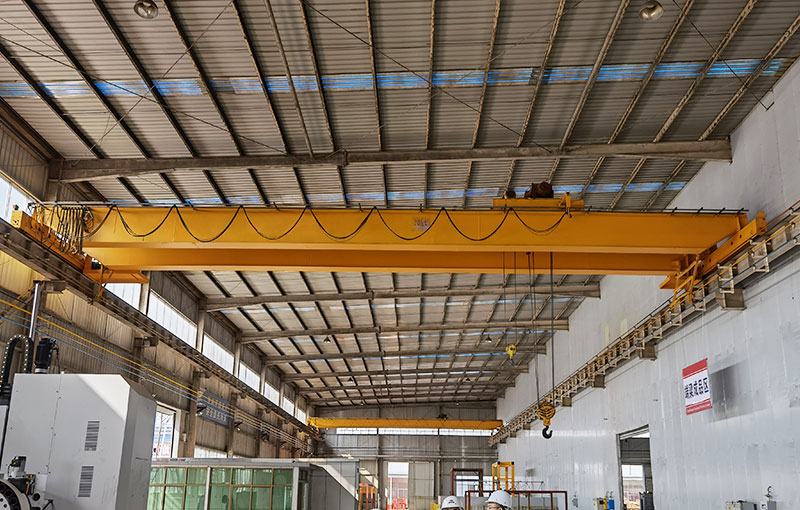

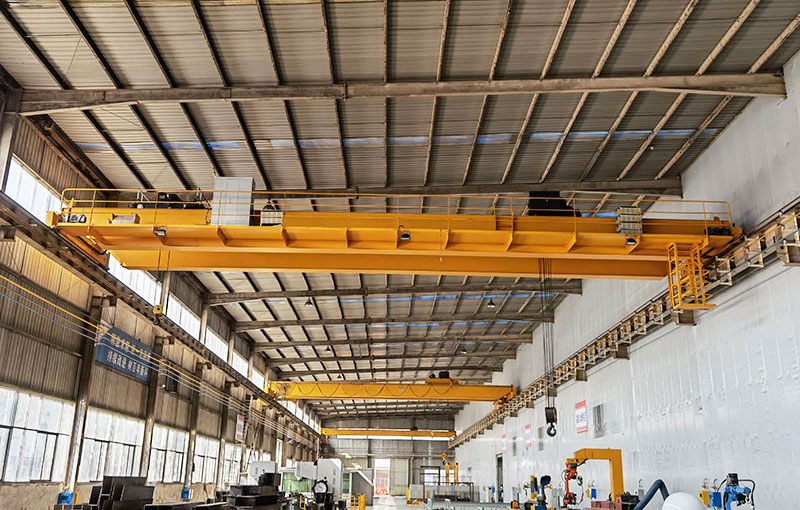

Overhead cranes are essential in modern industrial facilities, providing efficient lifting, transporting, and positioning of heavy materials. Among these, a 15-ton overhead crane is commonly used in workshops, factories, and warehouses where moderately heavy loads are handled. While the crane’s rated capacity indicates the maximum weight it can lift, safe operation depends on more than just staying under this limit. One critical factor is load distribution, which plays a pivotal role in ensuring the crane’s structural integrity, stability, and operational safety. Improper load distribution can lead to accidents, equipment damage, and costly downtime. This article explores how load distribution affects 15-ton overhead crane safety and provides practical guidelines for operators and engineers.
Understanding Load Distribution
Load distribution refers to how the weight of the lifted object is spread across the crane’s hoist, trolley, and bridge structure. In an ideal scenario, the load should be evenly distributed, allowing the 15 ton overhead crane to operate smoothly without creating excessive stress on any single component. Uneven load distribution occurs when weight is concentrated at one point or when a load is not aligned with the crane’s centerline. This imbalance can generate dangerous conditions such as:
-
Excessive bending of the main girder – When the load is not centered, the crane girder experiences uneven stress, which can deform the beam over time or cause immediate structural failure in severe cases.
-
Overloading of hoist or trolley wheels – Concentrated loads increase the pressure on individual wheels, accelerating wear and increasing the risk of mechanical failure.
-
Instability during lifting and travel – Uneven load distribution can make the crane sway or oscillate, particularly during high-speed trolley movement, putting operators and nearby personnel at risk.
-
Reduced lifting efficiency – Misaligned or unbalanced loads can make the crane consume more energy to lift and move materials safely, leading to unnecessary operational costs.
For a 15-ton crane, which is designed to handle moderate heavy loads, maintaining proper load distribution is especially critical because even minor deviations can amplify stress on the structure.
Factors Affecting Load Distribution
Several factors influence how weight is distributed when lifting with a 15-ton overhead crane:
1. Load Shape and Size
Large or irregularly shaped loads can cause uneven weight distribution if not properly rigged. For example, lifting a long steel beam from one end places more stress on that side of the crane, increasing the likelihood of bending or twisting.
2. Attachment Points
The points where slings, hooks, or lifting devices attach to the load significantly impact balance. Incorrect attachment can shift the load’s center of gravity, causing tilting or side loading that the overhead bridge crane is not designed to handle.
3. Crane Geometry
The distance between the hoist and crane girder supports affects how the load is transferred to the structure. Loads positioned too far from the crane’s trolley center can produce uneven stress across the girder, rails, and supporting columns.
4. Movement and Speed
Crane acceleration and deceleration influence how the load behaves. Sudden starts or stops can magnify the effects of uneven distribution, causing dynamic forces that exceed static load calculations.
Risks of Improper Load Distribution
Failing to manage load distribution on a 15-ton crane can have serious consequences, including:
-
Structural Damage – Excessive stress on the main beam, trolley frame, or support rails may cause permanent deformation or cracks in steel components.
-
Hoist and Wire Rope Failures – Overloading one side of the hoist can cause uneven wear on wire ropes, drums, and sheaves, leading to mechanical failures.
-
Trolley Derailment – Unequal wheel loading increases the risk of trolley derailment, which can lead to sudden load drops.
-
Safety Hazards for Operators – Sudden load shifts, crane tipping, or swinging loads create a hazardous environment for operators and ground personnel.
-
Downtime and Maintenance Costs – Repeated improper lifting can lead to frequent maintenance needs, unplanned repairs, and loss of productivity.
In practical terms, even a small deviation from proper load distribution can have amplified effects, particularly over time. A 15-ton crane is robust, but repeated uneven loading may gradually weaken components, shortening the crane’s operational lifespan.
Best Practices for Ensuring Proper Load Distribution
Maintaining safe load distribution requires attention at every stage of the lifting process—from planning to execution. Here are some best practices:
1. Accurate Load Assessment
Before lifting, calculate the weight and determine the center of gravity. Ensure the load does not exceed the overhead travelling crane rated capacity and that the hoist and trolley arrangement aligns with the load’s center of gravity.
2. Use of Spreader Beams and Lifting Devices
For long or irregularly shaped loads, use spreader beams, lifting bars, or multiple slings to distribute weight evenly across the crane’s lifting points. This prevents excessive stress on any single component.
3. Proper Rigging Techniques
Attach hooks and slings at the correct points, ensuring balance. Avoid side pulls or lifting from an angle, which can create uneven stress and dynamic instability.
4. Regular Inspection and Maintenance
Check the crane’s structural components, trolley wheels, hoist mechanisms, and wire ropes regularly. Look for signs of uneven wear, bending, or cracking, which may indicate repeated improper load distribution.
5. Operator Training
Operators should be trained to recognize signs of unbalanced loads, such as unusual swaying, jerking, or unusual noises. Proper training also includes slow and smooth movement of the trolley and hoist to minimize dynamic effects on the load.
6. Load Monitoring Systems
Modern material handling overhead cranes often include load sensors or monitoring systems that alert operators to overload or uneven distribution. For a 15-ton crane, even simple visual indicators can help prevent unsafe conditions.
Real-World Considerations
In real-world applications, a 15-ton overhead crane might lift loads like steel coils, machine parts, or concrete blocks. Operators often assume that staying under the rated 15-ton limit is sufficient, but even 12–13 ton loads can become dangerous if distributed unevenly. For instance:
-
Lifting a rectangular steel plate with the hoist attached off-center can put more than 50% of the weight on one trolley wheel.
-
Moving long machine components without a spreader beam may cause the main girder to bend or twist slightly, reducing safety margins.
-
In workshops with narrow aisle spacing, unbalanced loads can collide with structures or other equipment, causing accidents.
By carefully planning lifts, inspecting loads, and using appropriate rigging methods, operators can maintain safe load distribution and maximize crane efficiency.
Conclusion
Load distribution is a critical factor in the safe operation of a 15-ton overhead crane. While the crane’s rated capacity provides a baseline for lifting, the actual safety depends on how weight is applied across the hoist, trolley, and girder structure. Uneven distribution can cause structural damage, mechanical failures, instability, and safety hazards.
To ensure safe operation, facilities should implement strict load assessment procedures, use proper rigging and lifting devices, perform regular inspections, and train operators thoroughly. Integrating load monitoring systems further enhances safety, allowing proactive management of potential issues. By prioritizing proper load distribution, industries can protect their workforce, extend crane lifespan, and maintain efficient material handling operations.
A 15-ton overhead crane is a versatile tool, but its effectiveness and safety rely on understanding and managing load distribution – because a well-balanced lift is always a safe lift.
